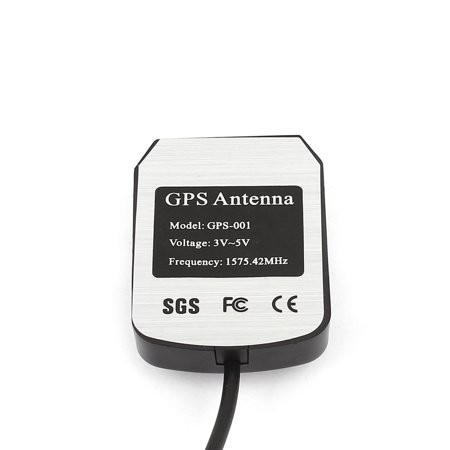

External GPS Antenna for car magnetic base active GPS antenna with sma connector
1. Antenna Specification:
Center Frequency:1575.42MHz
V.S.W.R:<=1.5
Band Width:±5 MHz
Polarization:Right-hand polarization
Impendence:50Ω
2. LNA Specification:
LNA Gain(Without cable):≥27dB
Noise Figure:<=1.5dB
Interference suppression:20dB(f0±140MHz)
V.S.W.R :<2.0
DC Voltage:3.0±0.3VDC;5.0±0.5VDC
DC current:<=20mA
3. Mechanical Specification:
Weight:<47()gram
Size:46×46×13mm
3m Cable:RG174
Connector:SMA
Mountin:Magnetic base
Package Included:
1 X GPS Antenna
Application Range :
Car antenna are fit for most car,
the mounting location are roof, the funcation include FM, GPS, GSM, TB
Advantage:
1. the function, shape and color are optional.
2. Once producing, our QC will check every link, we promise that we will give you the best products.
3. One by one testing to ensure that each parts performance are excellent.
4. In good condition, can be used in a wide range of signal with long life and high relibility.
| Frequency Range | 1575.42MHz |
| Gain | 28DBI |
| Input Impendance | 50 ohm |
| Connector | SMA / custom |
| Maximum Input Power | 50W |
| Working Temperature | 20-80% |
| Cable length | 1m / 2m / custom |
What we can do for you:
1. OEM - special customize-made, all kinds of funcation and different frequency according to your need.
2. For some special items, you can offer samples.them we can customize-made for you.
3. Factory sales directly.
4. Certification: ISO9001, CE, ROSH
About payment:
1) We accept West Union, TT. Paypal. All major credit cards are accepted through secure payment processor ESCROW.
2) Payment must be made within 3 days of order.
Product Tags:
|
|
3M Vehicle GPS Antenna , Car Camera / Car GPS Active Remote Sat Nav Antenna Images
|
