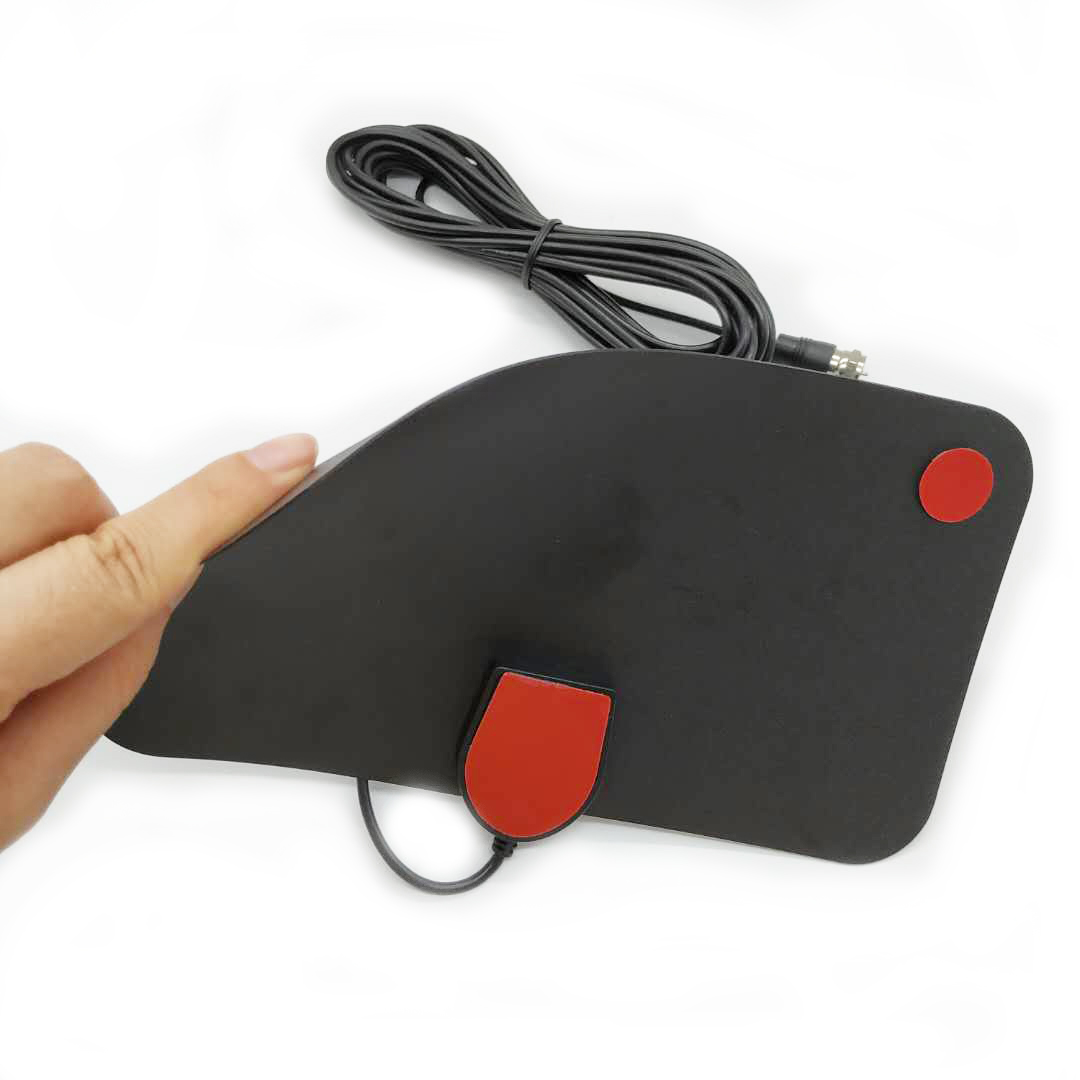

Ultra Thin Indoor HD Television Antennas 10ft Coaxial Cable , Gain 30dbi Hd Digital Antenna with amplifier
Electrical specification |
| Frequency range | VHF174-230/UHF470-862MHZ |
| Gain | 30dbi |
| VSWR | ≤ 1.5 |
| Supply power | 3V |
| Antenna Color | black |
| Power consumption | ≤15mA |
| Cable length | 5M/Customiezed |
| Max Input power | 50W |
| Polarization | Vertical |
| Working Humidity | 20~80% |
| Impendence | 75Ω |
Mechanical specification |
| Antenna dimension | 330*300mm |
| Connector | F-male / IEC |
| Cable | RG174(1.5c-2v) |
| Weight | 214±5g |
| Operating temperature | -40℃~﹢85℃ |
| Fixed method | Plaste |
Features
1.Innovation flat ,razor-thin antenna design.
2.It has high gain and low error rate digital tv signal reception ,and a signigicant signal enhancement in actual use.increase the reception of tv programs ,and eliminate the paise the mosaic images.
3.Multi-directional design pulls in signals from all directions.
4.Fast and easy to set up -unwrap,plug it in and scan channels.
5.You can put it on hte wall ,on the table or on the window(strongly recommended) and it will make you enjoy wacthing crystal clear digital &hd shows with many opportunities.
Adjustment of antenna directions
• Connect the antenna to TV properly .
•Set TV to antenna mode.
•When the singal qualith is low ,adjust the location of the antenna or rote it towards
television station .
•You an watch the clear tv program until the signal quality gets unproved.
Set up guide
Step 1:Connect the end of attached coaxial to the antenna connector on the back of the tv or digital
converter box,plug the usv plug into the usb port of the tv or digital converter box.
Step 2:Hand held the antenna ,near the window,place it horizontally or vertically
Step3:In the tv or the stb setup menu,set the tuner mode to antenna or air for more detailed instructions
,please refer to your tv munual.
Step4:In the tv or the stb setup menu,set tv to scan for channels,this can sometimes be listed as auto-program ,auto-scan ,channel search or channel scan.
Consult the tv manual or detailed instrucrtions.
Step5:If reception id sporadic,try moving the antenna to another location and rescanning the tv unit optimal position is found.

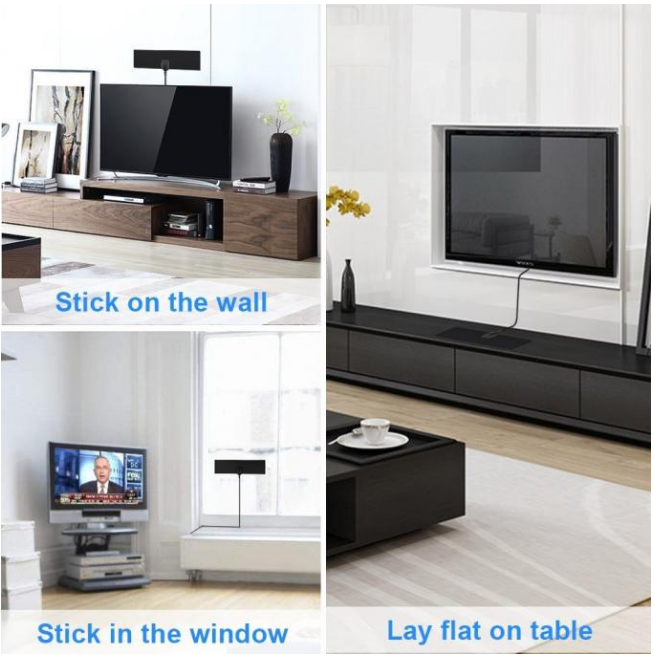

Place options
1.Stick on the window 2.lay flat in the table 3.stick on the wall 4.behing the tv
Note:for the best reception ,please check the following tips
1.This digital hdtv antenna is intended for indoor use only.
2.Placing the antenna higher or closer to / in a window may result in better reception .you must rescan
whenever you move the antenna .
3.Keep the antenna away from any source of interference:Keeep the antenna away from hose big power
consumption devices,such as air condition elevator,hairdryer and microwave oven...ect.
