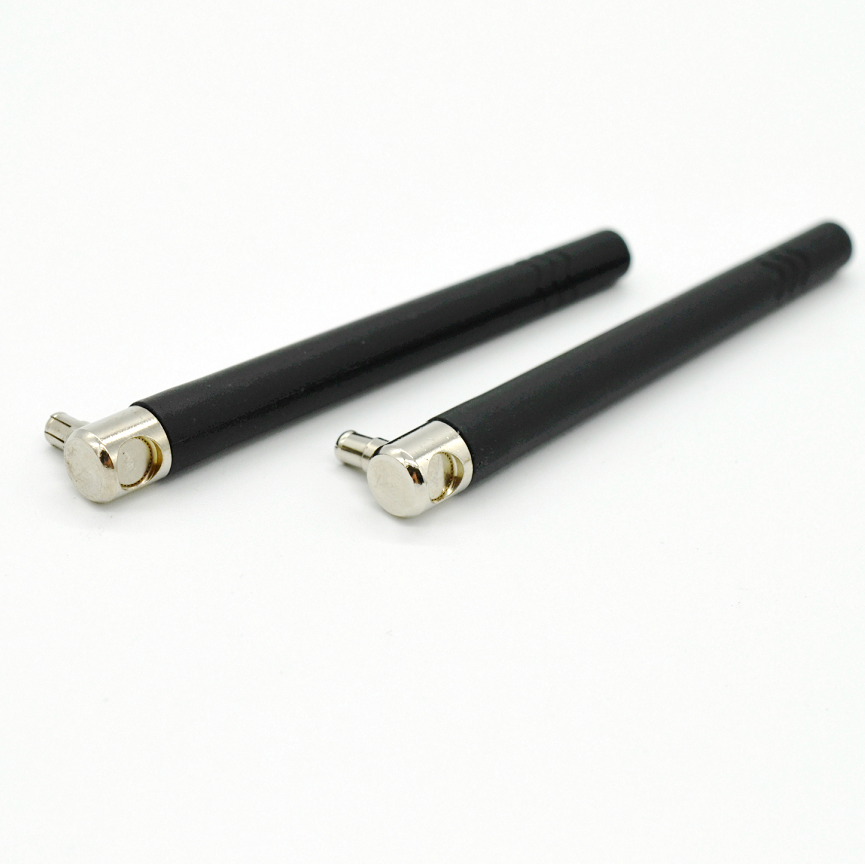

3DBI GSM /3G Network Antenna/Short CDMA/GPRS Rubber External Antenna With MCX Connector
| Frequency Range | 800-2100MHz/Custom |
| Gain | 3DBI |
| Input Impendance | 50 ohm |
| Connector | mcx/ or others |
| Maximum Input Power | 50W |
| Working Temperature | 20-80% |
| Cable length | Custom |
| Environment performance test |
| Project | Test condition | Test results |
| Storage environment | Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa | Electrical and mechanical performance normal |
| High and low temperature test | Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Resistance constant hot and humid test | Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Vibration test | Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times | Vibration test |
| Fall test | From 1m height fall down 3 times freely (vertical direction) | Electrical and mechanical performance normal |
Features:
1. it have several type :2dbi,3dbi,5dbi,7dbi,9dbi...
2. the connector can be F,SMA ,MCX.IPEX...
3. The antenna can be customized be GSM ,GPRS,LTE,WIFI ...
Our services:
1. The price is competitive ,because we are factory sales directly.
2. 100% high quality, all failed parts get free warranty within 30 days after received.
3. Accept 1 years warranty upon customer requirement.
4. Unique designed package for you can be provided upon customer requirement.
5. Special feature and service can be provided upon requirement.
6. Delivery fastly 5-10 days can ship out.
7. We can offer free sample.
