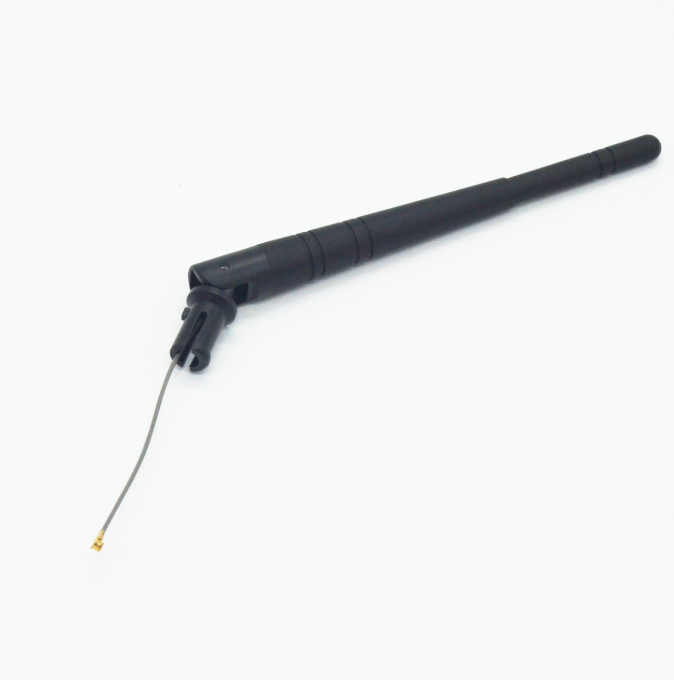

IPEX Connector 3dbi WIFI / WLAN 2.4 Ghz Rubber Antenna For Router Use
Specifications:
1. Frequency Range:2400-2500MHz/Custom
2. Gain:3DBI
3. Input Impendance:50 ohm
4. Connector:IPEX/ or others
5. Maximum Input Power:50W
6. Working Temperature:20-80%
7. Cable length:Custom
8. Antenna Color:Black
9. VSWR:≤1.5
Application:
1. Wi-Fi /WLAN /Bluetooth System
2. Router
3. Wireless Communication System
| Environment performance test |
| Project | Test condition | Test results |
| Storage environment | Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa | Electrical and mechanical performance normal |
| High and low temperature test | Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Resistance constant hot and humid test | Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Vibration test | Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times | Vibration test |
| Fall test | From 1m height fall down 3 times freely (vertical direction) | Electrical and mechanical performance normal |
Our services:
1. We are factory sales directly.
2.100% high quality, all failed parts get free warranty within 30 days after received.
3. Accept 1 years warranty upon customer requirement.
4. Unique designed package for you can be provided upon customer requirement.
5. Special feature and service can be provided upon requirement.
6. Delivery fastly 5-10 days can ship out.
Product Tags:
|
|
IPEX Connector Omni WiFi Antenna , WLAN 2.4 Ghz Rubber WiFi Antenna Images
|
