Internal GSM GPRS Antenna 850 - 2170 MHZ IPEX Connector FPC Soft Aerial

Product Categories
Shenzhen Yunding Communication Electronics Co.,Ltd
Contact Now

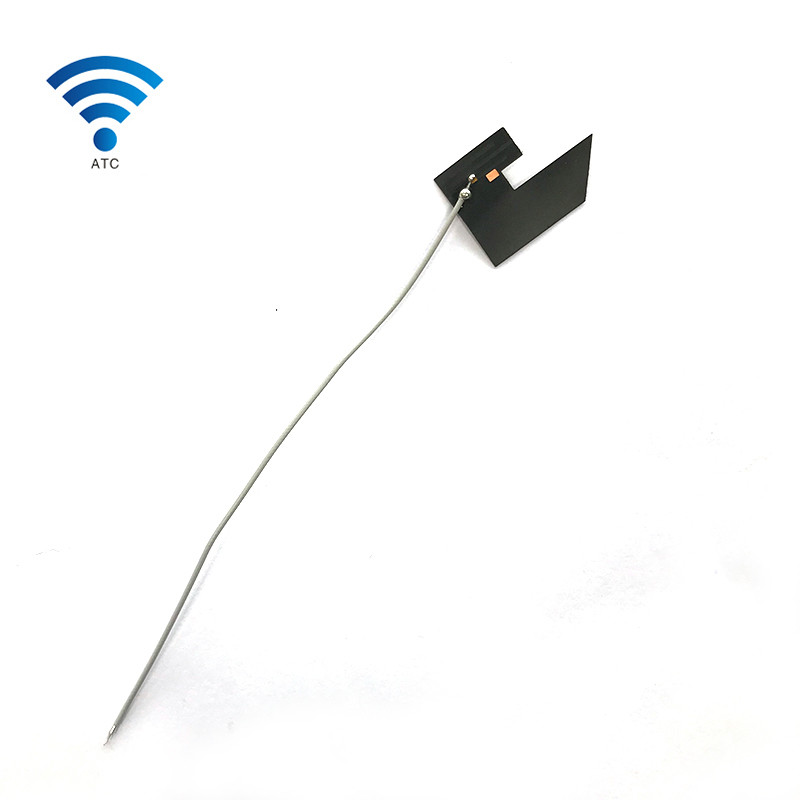

Internal GSM GPRS Antenna 850 - 2170 MHZ IPEX Connector FPC Soft Aerial

Brand Name : YUNDING

Model Number : YDFPC-001

Certification : ROHS

Place of Origin : Guangdong, China (Mainland)

MOQ : 100pcs

Price : negotiation

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 300000 Piece/Pieces per Day

Delivery Time : 4-15 work days

Packaging Details : 1pcs put into a transparent polybag, 40 bags put into a carton.

Product name : FPC Antenna

V.S.W.R : ≤1.5

Function : 2/3/4G/WIFI/433Mhz

Frequency Range : 850-2170MHZ

Gain : 5DBI

Connector : IPEX/custom

Color : Custom

Type : Internal

Contact Now

GSM GPRS 3G built-in antenna 850-2170MHZ with IPEX connector FPC soft aerial inner antenna





Description:

  • Frequency:850-2170MHZ

  • Cable type:1.13mm black

  • Cable length:11cm

  • Total length:16cm

  • Connector:IPEX

  • Material: FPC Soft board



Environment performance test

Project



 Test condition Test results



Storage environment





 Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Vibration test Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times		 Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal



Internal GSM GPRS Antenna 850 - 2170 MHZ IPEX Connector FPC Soft Aerial

Application





1. Smart Phone



2. POS Machine



3. GSM / CDMA / 3G Mobile Phone System





Advantage:


1. The function, shape and color are optional.

2. Once producing, our QC will check every link, we promise that we will give you the best products.

3. One by one testing to ensure that each parts performance are excellent.

4. In good condition, can be used in a wide range of signal with long life and high relibility.





Packaging Details

  • Unit Type:  lot (2 pieces/lot)


  • Package Weight:  0.03kg (0.07lb.)


  • Package Size: 5cm x 2cm x 1cm (1.97in x 0.79in x 0.39in)





FAQ:


  • Is there any tracking Number for my item?

    Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.


  • Is the product same as photos?

    Yes, all photos are real. We took these photos by ourselves.


  • Which size can fit me?

    We suggest you look at our size suggestion chart below and our product size chart if you are normal figure. if you have special figure, please contact us ( tell us your height and weight, bust, waist, hip size ).


  • Can you declare lower value?

    Yes, usually we'll declare $10-$20 for small parcels (1-5 pcs). If you have special request please contact us.


  • I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

    Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to
    us, we will give you the best price, thanks!Internal GSM GPRS Antenna 850 - 2170 MHZ IPEX Connector FPC Soft AerialInternal GSM GPRS Antenna 850 - 2170 MHZ IPEX Connector FPC Soft Aerial
