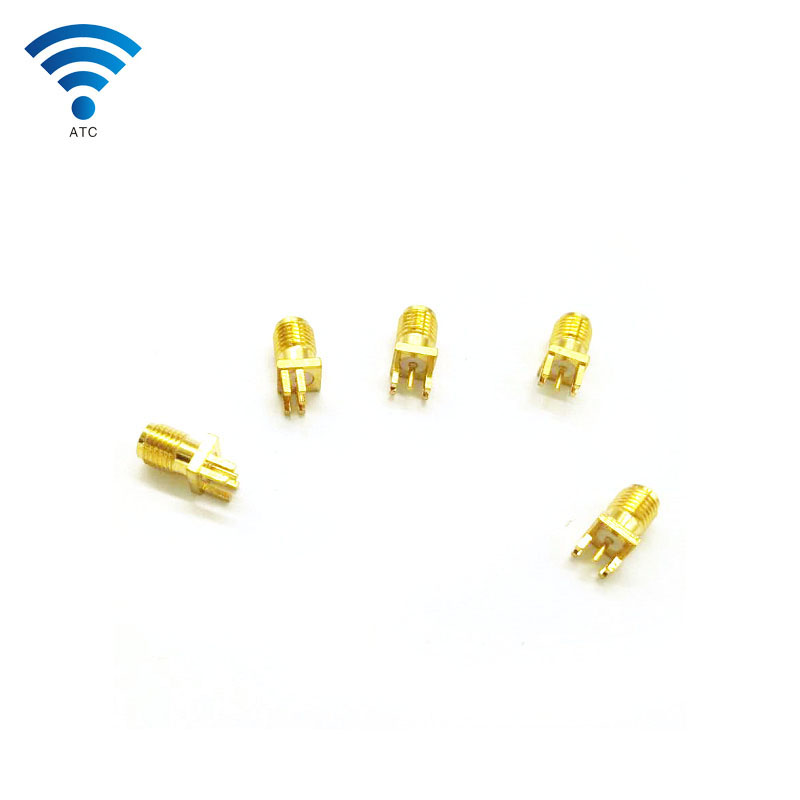

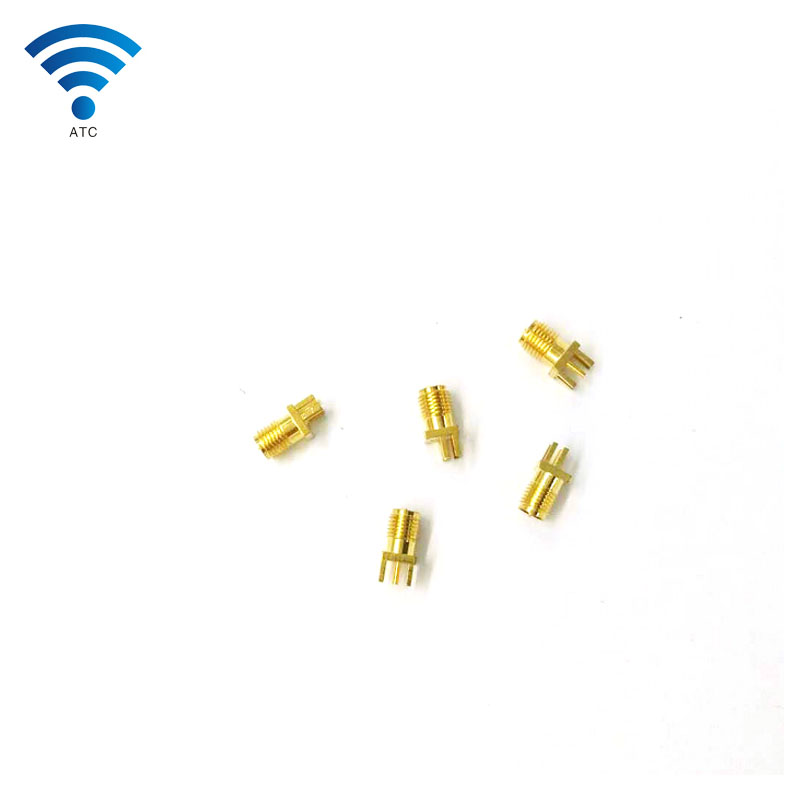

Solder Edge PCB Straight Mount Female Coax Connector , SMA Coaxial Cable Jack

Shenzhen Yunding Communication Electronics Co.,Ltd
Contact Now

Solder Edge PCB Straight Mount Female Coax Connector , SMA Coaxial Cable Jack

  • 1
  • 2
  • 3

Brand Name : YUNDING

Model Number : ZS-001

Certification : ROHS

Place of Origin : Guangdong, China (Mainland)

MOQ : 100pcs

Price : negotiation

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 300000 Piece/Pieces per Day

Delivery Time : 5-10 work days

Packaging Details : 1pcs put into a transparent polybag, 40 bags put into a carton.

Product name : Antenna seat

V.S.W.R : ≤1.5

Frequency Range : 0-8GHz

Gain : 6-8GHz

Color : Custom

Type : Indoor

Contact Now

SMA Female Jack Connector Gold plated RF Connectors Receptacle Solder For Solder Edge PCB Straight Mount



Spectification:





RF adapters cost effective solution, which is high quality and quick combinations by simply screwing two





connectors together, with no soldering or crimping required.





RF adapter product line includes in-series RF adapters design and between series adapter designs as





well as T and Cross RF adapters.





Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male,





female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or reverse





polarity.





RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees





versions,as well as bulkhead ,or 4 hole panel configurations.





RF adapters in standard and high performance with brass body .The stainless steel body will be





customized!





1. Material: Goldplated





2, Model: SMA female to SMC female connector;





3. Connection for two-way radio, audio, video, and other test equipment, a mobile radio





Connecting the low-frequency two-way radio antenna apparatus is widely used in audio, video, and other





mobile wireless devices in the test.





Convert From (Adapter End): SMA female; Convert To (Adapter End): SMC female connector





Style: Straight





Series: SMA Series





Application :




1. the connection between Board to Board




2. It usually has vertical connection and right angle connection




3. the connection between cable and device



 Frequency Range  0-8GHz
 Gain  6-8GHz
 Input Impendance  50 ohm
 Maximum Input Power  50W
 Working Temperature  20-80%





Environment performance test

Project



Test condition Test results



Storage environment





Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃~+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality.

Measurement satisfied with electrical and mechanical performance normal.



Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality.

Measurement satisfied with electrical and mechanical performance normal.



Vibration test Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times
Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal





Our services:





1. We are factory sales directly.





2. 100% high quality, all failed parts get free warranty within 30 days after received.




3. Accept 1 years warranty upon customer requirement.




4. Unique designed package for you can be provided upon customer requirement.




5. Special feature and service can be provided upon requirement.




6. Delivery fastly 5-10 days can ship out.

Solder Edge PCB Straight Mount Female Coax Connector , SMA Coaxial Cable Jack



Our company:





Shenzhen Yunding Communication Electronics Co.,Ltd. was established in September,2014.mainly





specializing in the research ,development,produce and selling of multiple wireless terminal antenna .





We boast a huge technical innovation capacity and an abundant reserve of knowledge on





antenna.Moreover,we are featured by great innovation capacity in technical fields of high-low temperature





test chamber,salt spray cabinet ,and OTA anechoic Chamber.and all of which have notably helped us





fulfill product development in an efficient way.





We are committed to high quality and stability of all products.strict quality control approaches always





assure high and stable quality of our products and our services.



Solder Edge PCB Straight Mount Female Coax Connector , SMA Coaxial Cable Jack
