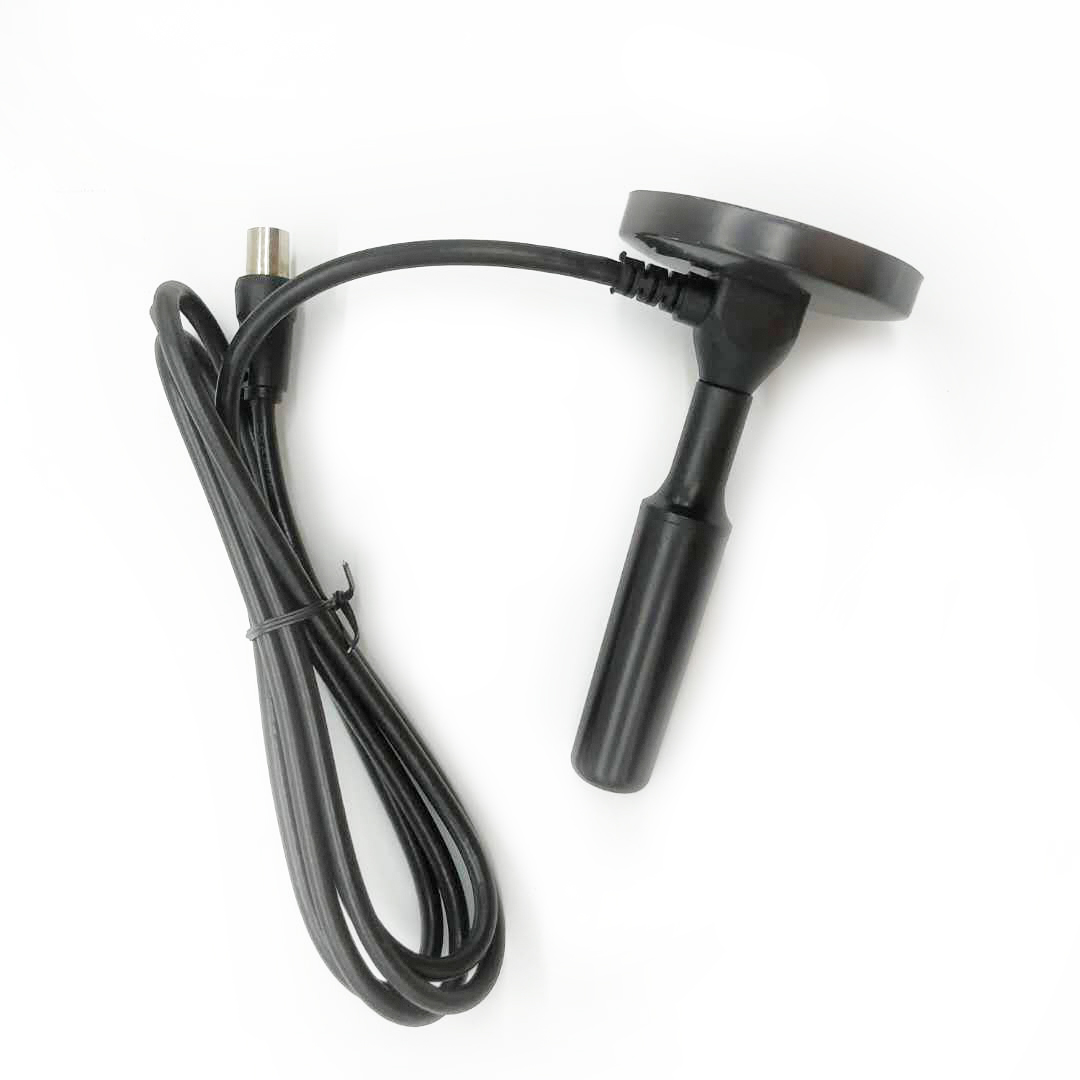

DVB-T2 magnetic base antenna, vehical mobile roof HD Television Antennas for car or boat
| Frequency Range | 174~230/470~862Mhz/custom |
| Gain | 12DBI |
| Input Impendance | 50 ohm |
| Connector | F/ or others |
| Cable length | Custom |
| Working Humidity | 20~80% |
| Maximum Input Impedance | 50W |
| Working Temperature | -40ºC~+85ºc |
| Environment performance test |
| Project | Test condition | Test results |
| Storage environment | Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa | Electrical and mechanical performance normal |
| High and low temperature test | Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Resistance constant hot and humid test | Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. | Measurement satisfied with electrical and mechanical performance normal. |
| Vibration test | Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times | Vibration test |
| Fall test | From 1m height fall down 3 times freely (vertical direction) | Electrical and mechanical performance normal |
Description:
Standard coaxial cable - Ideal for use with all Digital ready devices,Compact and lightweight - Perfect for
portable TV’s and multimedia players
Magnetic base - Improve reception by harnessing large metal surfaces
3M cable - Easy and flexible positioning for best reception
Optimized for digital reception - Receive clear ATSC and radio broadcasting
1. Ametalring integrated into the base ensures excetallent stability
2. Wided an breception range for VHF and UHF Signals
3. 50ohm aerial connector plug
4. Omni directional reception aerial
5. Particularly space-saving aerial
Frequency Ranges:174-230MHZ;UHF:470-862MHZ
Polarisaton:vertical
Gain:approx.12dbi
Connection length:approx.3m/customized
Magnetic based mounting
Cable Connector: TV Plug default
